WS High Efficient Horizontal Wet Type Bead Mill
  • Yushun
  • Hebei,China
  • According the order or stock
  • 1000 sets one year

WS High Efficient Horizontal Wet Type Bead Mill apply in industry of coatings, paint, ink, dyestuff, pesticide and new energy etc. Our sand mill are high efficient wet type mill, large production capacity, low energy consumption,
The full Ex-proof made the machine more safety, the outer grinding chamber is SS304, Import Siemens PLC, Gear pump or pneumatic diaphragm pump as your choose.

WS High Efficient Horizontal Wet Type Bead Mill



Product Description

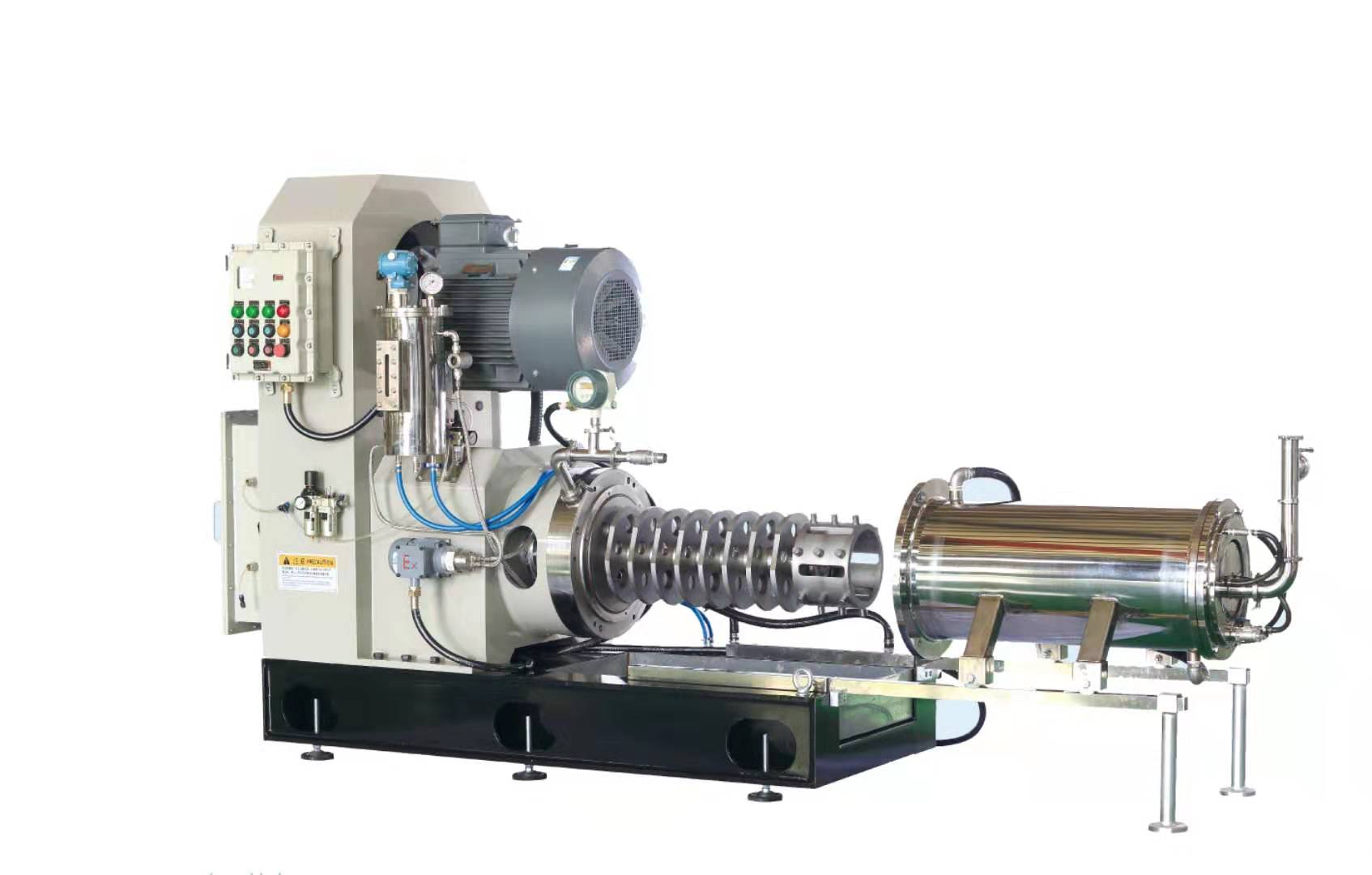

wet type bead mill



Main Feature

  • Compact and stable welding structure rack, useful and mice appearance.

  • Well-designed discs and pin combine dispersing system, strong energy exchange between grinding beads and material, thereby reaching super fitness grinding.

  • Advanced large flow separating screen, ensure high efficient production, no block up.

  • Integrated double mechanical seal, allowed choosing lubricant according to product character.

  • Easy replaced high wear-resistant inner grinding chamber and dispersing parts, Alloy steel, ceramic, high polymer material, stainless steel etc for choice.

  • Screw type for water cycle passageway, multiple positions cooling water setting, excellent cooling performance.

  • Full Ex buttons control and scientific PCL touch screen control for choice.

  • Feeding Pressure, Output Temperature, Mechanical seal lubricant oil level etc multiple safety control.



Configuration Table     ♦ Standard/◊Optional
Full Ex-Proof
Outer Grinding chamber304
A3
Inner Grinding chamber

Polyurethane

Silicon Carbide
Cemented carbide
PumpGear Pump
Pneumatic Diaphragm Pump
PLCSiemens
Domestic


Technical Parameter

ModelWS-5WS-20WS-30WS-60WS-100WS-150
Tube effective volume(L)5203030100150
Main motor power(KW)5.52230375575
Grind medium quantity(L)3-3.514-1721-25.542-5170-8590-120
Material Viscosity(pa.s)<10
Pump age(L)0-300-60
Air consumption (m3/min)0-0.40-0.6
Main shaft revolution(r)11101011919694510484
Water consumption(m3/h)0.611.5222
Suttle(T)0.811.21.52.32.5
Mearsurement(LxWxH)1000*500*9502100*950*16002360*1000*17002300x1000*17002480*1000*1800
Productive Capacity(Kg/h)10-1030-30050-50070-700120-12001500-2000
Feed tube diameterG3/4"G 1"G1 1/2"
Discharge tube diameterG1"G1 1/2"G2"
Cooling tube diameterG3/8"G3/4" XG1/2"



Product details of sanding mill machine

bead millhorizontal bead mill



Application

Widely used in the industry of coatings, paint, ink, dyestuff, pesticide and new energy etc.
